FRONT MOUNT CYLINDERS   UC128-OBF



UC128-OBF - Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa
High resistence stainless steel connection bolt (ULTRABOLT)
Depending on the applications on the outboard engines, the UC128-OBF is available in 3 versions:
UC128-OBF/1 - 39423 Z UC128-OBF/2 - 39966 R UC128-OBF/3 - 39967 T


In the applications with dual UC128-OBF cylinder it is necessary to order a standard UC128-OBF cylinder (link arm attached to the starboard side of the cylinder) and a port UC128P-OBF cylinder (link arm attached to the port side of the cylinder).
Depending on the applications on the outboard engines, the UC128P-OBF port cylinder is available in 2 versions:

UC128P-OBF/1 - 40106 U UC128P-OBF/2 - 40107 W



UC128-OBF cylinder applications
UC128-OBF order guide



BALANCED: The number of turns lock to lock is equal port to starboard or vice-versa

                       Detail Specifications Front Mount Cylinder, pdf files

SPECIFICATIONS UC128- OBF
Volume 128cc - 7.8 cu. in.
Output force 450 Kg - 992 lbs.
Inside diameter 35 mm - 1.37 in.
Stroke 198 mm - 7.79 in.
Fittings for 3/8"high pressure flex hose

For

UC128-OBF-1-2-3

List $489.00

Your Price  $437.50


SIDE MOUNT CYLINDERS UC132-OBS
UNBALANCED: The number of turns lock to lock is not equal port to starboard or vice-versa

                  Detailed Specification Side Mount Cylinder, pdf files

SPECIFICATIONS UC132-OBS
Volume 132 cc - 8 cu. in.
163 cc - 9.95 cu. in.
Output force 455 Kg - 1003 lbs.
563 Kg - 1240 lbs.
Inside diameter 32 mm - 1.25 in.
Stroke 203 mm - 8.0 in.
Fittings for 3/8"high pressure flex hose

UC132-OBS

List $ 334.00

Your Price $286.00


INBOARD CYLINDER
All balanced cylinders: the number of turns lock to lock is equal port to starboard or vice-versa



                                               Detailed Specification Inboard Cylinders, pdf files

SPEC. UC116-1 UC168-1 UC215-1
Volume 116 cc - 7. cu.in. 168cc - 10.25 cu.in. 215 cc - 13.12 cu.in.
Torque @ 70 Bar 57,8 kgm - 5043 lbs. in. 86,6 kgm - 7565 lbs. in. 110,87 kgm - 9652 lbs. in.
Output force 455 kg - 1004 lbs. 682 kg - 1505.5 lbs. 682 kg - 1505.5 lbs.
Inside diameter 32 mm - 1.25 in. 40 mm - 1.57 in. 40 mm - 1.57 in.
Stroke 178 mm - 7 in. 178 mm - 7 in. 228 mm - 9 in.
Fittings for 3/8" nylon tube for 3/8" nylon tube for 3/8" nylon tube
Tube Material Aluminum Aluminum Aluminum
UC116-1 List $ 398.00 Your Price $306.00

UC168-1

List $542.00 Your Price $418.00

UC215-1

List $573.00 Your Price $443.00

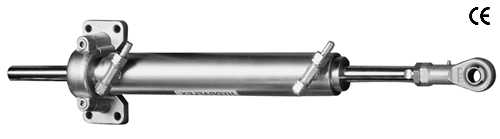

HD SERIES
dettaglio
All balanced cylinders: the number of turns lock to lock is equal port to starboard or vice-versa



SPEC. UC-293 I-B 378
Volume 293,4 cc - 17.9 cu.in. 377,2 cc - 23.02 cu.in.
Torque @ 70 Bar 146,5 kgm - 12782 lbs. in. 187,6 kgm - 16347 lbs. in.
Output force 1153 kg - 2545.2 lbs. 1153 kg - 2545.2 lbs.
Inside diameter 50 mm - 1.9 in. 50 mm - 1.9 in.
Stroke 178 mm - 7 in. 228 mm - 9 in.
UC-293 List $657.00 Your Price $523.00
I-B378 List $ 814.00 Your Price $620.00

STERNDRIVE STEERING
UC 133-IOB All balanced cylinders: the number of turns  lock to lock is equal port to starboard or vice-versa
UC 132-OBS Unbalanced cylinder: the number of turns lock to lock is not equal port to starboard or vice-versa

                    Detailed Specification Sterndrive Cylinders, pdf files

SPEC. UC132-OBS
UNBALANCED
UC133-IOB
BALANCED
Volume 132,11 cc - 8.06 cu.in. 132,11 cc - 8.06 cu.in.
164,34 cc. 10.03 cu.in.
Torque @ 70 Bar 66 kgm - 5739 lbs. in. 66 kgm - 5739 lbs. in.
81,6 kgm - 7095 lbs.in.
Output force 455 kg - 1004 lbs. 464 kg - 1023lbs.
574 kg - 1265 lbs.
Inside diameter 32 mm - 1.25 in. 32 mm - 1.25 in.
Stroke 203 mm - 8 in. 203 mm - 8 in.
Fittings for 3/8" nylon tube for 3/8" nylon tube
UC133-IOB Your Price $286.00
UC132-OBS Your Price $296.00
