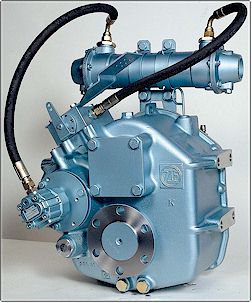

ZF 220 (IRM 220 PL) |
- Reverse reduction marine transmission with
hydraulically actuated multi-disc clutches
- Suitable for high performance applications in
luxury motor yachts, sport fishers, express cruisers etc.
- Robust design also withstands continuous duty in
workboat applications
- Fully works tested, reliable and simple to install
- Compatible with all types of engines and
propulsion systems, including water-jets and surface-piercing propellers, as applicable
- Design, manufacture and quality control standards
comply with ISO 9001
|
|
|
| MAIN FEATURES |
- Lightweight and robust aluminium alloy casing (sea
water resistant)
- Case hardened and precisely ground gear teeth for
long life and smooth running
- Output shaft thrust bearing designed to take
maximum propeller thrust astern and ahead
|
- Smooth and reliable hydraulic shifting with
control lever for attachment of push-pull cable
- Suitable for twin engine installation (same ratio
and torque capacity in ahead or astern mode)
|
|
| OPTIONAL EXTRAS |
- Oil cooler complete with fittings and flexible oil
hoses
- Engine-matched torsional coupling
- Mounting brackets
- Trolling valve for slow-speed drive
- Propeller shaft flange and coupling bolt sets
|
- SAE 2 and SAE 3 bell housings
- PTO (live)
- Electric clutch control (12 or 24 VDC)
- Classification by all major Classification
Societies on request
|
|
|
