ZF Marine ZF80A (HSW800A2) Down Angle, Direct Mount marine transmission - Dimensions and CAD Drawings

ZF 80 A (HSW 800 A2)

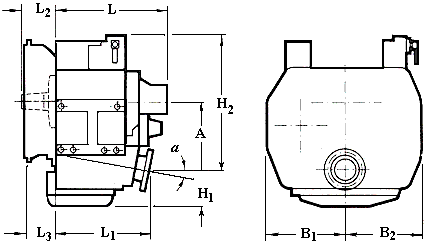

INSTALLATION DIMENSIONS

Dim.	A	B₁	B₂	H₁	H₂	L	L₁	L₂	L₃	a
mm	160	210	210	112	303	370	290.5	76	11	8°
inches	6.30	8.27	8.27	4.41	11.91	14.57	11.44	2.99	0.43	8°

.
