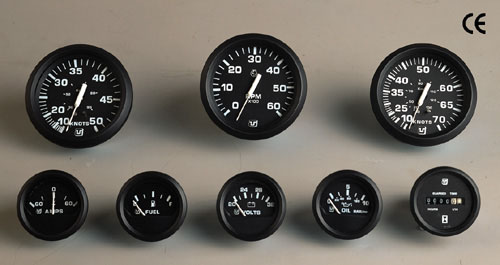

Instrument	Dial Range	Description	Sender	Hole size	Code
NEW 4 in 1 gauge	E - 1/2 - F, 10 -16 V 5 bar, 40 - 120°	4 gauges in 1:fuel level, voltmeter, oil pressure, water temperature	See accessories	85 mm	61483 A
Tachometer	6000 RPM 7000 RPM 4000 RPM 4000 RPM	For all 4, 6 & 8 cylinder inboard & I/O gas engine Universal for all outboard engines (4, 6, 8, 10, 12 & 20 pole). Diesel, 5:1, 1:1, 1.5:1, 2:1 mechanical take off Diesel, variable ratio for alternator connection	Not required Not required Uflex 60613 S Not required	85 mm 85 mm 85 mm 85 mm	60738 G 60509 S 60510 J 60510 J
Speedometer	30 Knot 50 Knot 70 Knot		Requires pitot tube	85 mm 85 mm 85 mm	60512 L 60513 M 60514 N
Fuel leve gauge	E - 1/2 - F		See accessories	53 mm	60518 T
Water level gauge	E - 1/2 - F		See accessories	53 mm	60544 W
Oil pressure gauge	5 bar 10 bar		See accessories See accessories	53 mm 53 mm	60521 M 60522 N
Transmission pressure gauge	25 bar		Not available	53 mm	60523 O
Water temperature gauge	40 - 120 °C		See accessories	53 mm	60526 R
Voltmeter	10 - 16 Volt 20 - 32 Volt	For all 12 volt electrical system For all 24 volt electrical system	Not required Not required	53 mm 53 mm	60529 W 60741 Z
Hourmeter	10.000 hours	Elapsed in hour / tenths (12 - 32 volt)	Not required	53 mm	60530 Q
Ammeter	60 - 0 - 60	Indicates electrical charge / discharge rate	Not required	53 mm	60532 S
Electronic Flux-Gate Compass system		12 Volt, internally illuminated, remote mounted sensor with 20’ harness included	Included	85 mm	61076 N
Clock		Quartz analog	Not required	53 mm	60531 R
Synchronizer		All twin gas & diesel inboard, l/o & outboard engines, twin diesel engines with magnetic flywheel pickup only	Not required	85 mm	60517 Q
Rudder angle indicator	Port-Starboard	Indicates relative position of rudder	See accessories	53 mm	60699 U

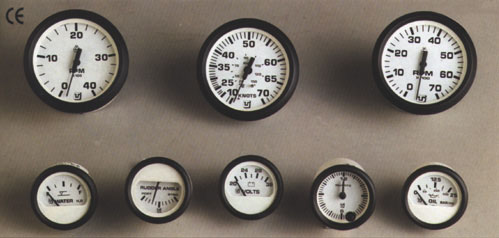

Instrument	Dial Range	Description	Sender	Hole size	Code
NEW 4 in 1 gauge	E - 1/2 - F, 10 -16 V 5 bar, 40 - 120°	4 gauges in 1:fuel level, voltmeter, oil pressure, water temperature	See accessories	85 mm	61424 C
Tachometer	6000 RPM 7000 RPM 4000 RPM 4000 RPM	For all 4, 6 & 8 cylinder inboard & I/O gas engine Universal for all outboard engines (4, 6, 8, 10, 12 & 20 pole). Diesel, 5:1, 1:1, 1.5:1, 2:1 mechanical take off Diesel, variable ratio for alternator connection	Not required Not required Uflex 60613 S Not required	85 mm 85 mm 85 mm 85 mm	60691 K 60533 T 60534 U 60534 U
Speedometer	30 Knot 50 Knot 70 Knot		Requires pitot tube	85 mm 85 mm 85 mm	60536 W 60537 X 60538 A
Fuel leve gauge	E - 1/2 - F		See accessories	53 mm	60542 U
Water level gauge	E - 1/2 - F		See accessories	53 mm	60544 W
Oil pressure gauge	5 bar 10 bar		See accessories See accessories	53 mm 53 mm	60545 X 60546 Y
Transmission pressure gauge	25 bar		Not available	53 mm	60547 Z
Water temperature gauge	40 - 120 °C		See accessories	53 mm	60550 U
Voltmeter	10 - 16 Volt 20 - 32 Volt	For all 12 volt electrical system For all 24 volt electrical system	Not required Not required	53 mm 53 mm	60553 X 60742 A
Hourmeter	10.000 hours	Elapsed in hour / tenths (12 - 32 volt)	Not required	53 mm	60554 Y
Ammeter	60 - 0 - 60	Indicates electrical charge / discharge rate	Not required	53 mm	60540 S
Electronic Flux-Gate Compass system		12 Volt, internally illuminated, remote mounted sensor with 20’ harness included	Included	85 mm	61077 O
Clock		Quartz analog	Not required	53 mm	60539 B
Synchronizer		All twin gas & diesel inboard, l/o & outboard engines, twin diesel engines with magnetic flywheel pickup only	Not required	85 mm	60541 T
Rudder angle indicator	Port-Starboard	Indicates relative position of rudder	See accessories	53 mm	60700 Q

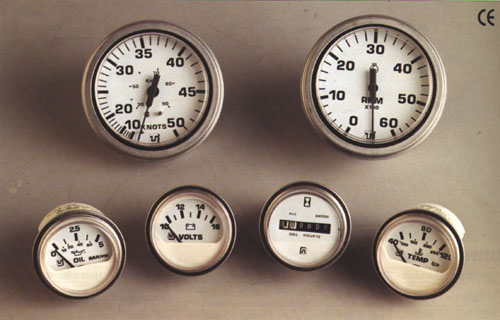

Instrument	Dial Range	Description	Sender	Hole size	Code
Tachometer	6000 RPM 7000 RPM 4000 RPM	For all 4, 6 & 8 cylinder inboard & I/O gas engine For outboard engines (4, 6, 8, 10, 12 & 20 pole alt.) For diesel alternator and mech. t.o	Not required Not required See accessories	85 mm 85 mm 85 mm	61152 I 61152 J 61153 K
Speedometer	30 Knot 50 Knot 70 Knot		Requires pitot tube	85 mm 85 mm 85 mm	61155 L 61156 M 61157 N
Fuel leve gauge	E - 1/2 - F		See accessories	53 mm	61158 Q
Water level gauge	E - 1/2 - F		See accessories	53 mm	61159 R
Oil pressure gauge	5 bar 10 bar 25 bar	For transmissions	See accessories See accessories Not available	53 mm 53 mm 53 mm	61161 J 61162 K 61163 L
Water temperature gauge	40 - 120 °C		See accessories	53 mm	61160 I
Volmeter	10 - 16 Volt 20 - 32 Volt	For all 12 volt electrical system For all 24 volt electrical system	Not required Not required	53 mm 53 mm	61164 M 61165 N
Hourmeter	10.000 hours	Elapsed in hour / tenths (12 - 32 volt)	Not required	53 mm	61167 P
Ammeter	60 - 0 - 60	For electrical charge / discharge rate	Not required	53 mm	61166 O
Rudder angle indicator	Port-Starb.	Indicates position of rudder	See accessories	53 mm	61169 T

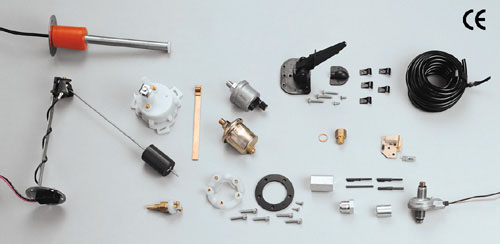

Dial

Description

Code

Diesel Tachometer
sender

Attaches to diesel sender mechanical take-off
Includes couplings and 4 drive keys

60613 S

Pitot kits

Pitot tube complete with transom mount mounting hardware
As above complete with 20’ of tubing

60515 O
60516 P

Oil pressure sender

5 bar
5 bar
10 bar
10 bar

Single station
Dual station
Single station
Dual station

1/8” NPTF
1/8” NPTF
1/8” NPTF
1/8” NPTF

60525 Q
60610 P
60611 Q
60612 R

Water temperature
sender

40-120 °C
40-120 °C

Single station
Dual station

1/8” NPTF
1/8” NPTF

60528 V
60614 T

Fuel level sender

20-40 cm
20-40 cm
36-60 cm
36-60 cm

Single
Dual
Single
Dual

All stainless steel with sealed electrical connections. Adjustable to tank depth

60519 U
60607 R
60608 U
60609 V

Rudder angle sender

Single station
Dual station

To use with Uflex rudder angle indicator

60701 R
60702 S

Water level sender

20 cm (8”)
30 cm (12”)
40 cm (16”)
45 cm (18”)
50 cm (20”)
55 cm (22”)
60 cm (24”)
65 cm (26”)
70 cm (28”)

Vertical type, magnetic axial working principle,
available for single station only

60758 K
60759 L
60761 D
60762 E
60763 F
60764 G
60765 H
60766 I
60806 F

Bushing Kits

temperature
and pressure
senders

1/8”xM10x1 & 1/8”xM12X1
1/8”x12x1.5 & M14X1.5
1/8”x16x1.5 & 1/8”xM18X1.5

60618 Z
60619 A
60620 R

24 Volt adaptor Kits

12-24 V
12-24 V
12-24 V
12-24 V

Tachometers & Synchronizers
Ammeter - Speedometer (24 Volt bulb only)
Water temperature
Oil pressure - fuel level - water level - rudder angle

60621 S
60623 U
60703 T
60704 U

Fuel level sender installation kit (for plastic fuel tanks)

60696 P
