HA200 AUTOPILOT, POWERFUL AND RELIABLE FOR ANY DESIRED COURSE

The Uflex HA200 autopilot is suitable for a wide range of sailboats and powerboats, inboard and outboard, with hydraulic or mechanical steering systems. The electronic system consists of a compact sized ( 145X75 mm ) waterproof control unit, with 6 keys for an easy and intuitive use and an LCD display, the fluxgate compass, the processor and the rudder angle transducer ( inboard or outboard ). If you need to control your pilot from two different drive station, you can connect a second control unit or a remote control to the processor.
To connect HA200 to your GPS you just have to press a key on the control unit or the remote control.
HA200 is suitable for a wide range of boats, with a navigation program for slow and fast boat, with 9 levels of variable rudder gain control. You can choose the power unit which best fit your boat, with hydraulic steering system we recommend reversible hydraulic pumps, with mechanical steering systems you will need to install a linear actuator.
If you are looking for a complete autopilot, simple to use and easy to install, fully compatible with your on-board instruments, chartplotter, radar and GPS, totally reliable in any sea and weather condition, HA200 is the pilot for you.

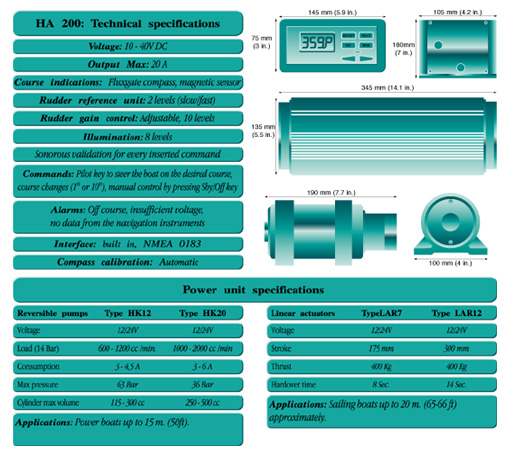

CHOOSING THE DRIVE UNIT FOR YOUR HA200 AUTOPILOT

Powerboats

With inboard engines and hydraulic steering systems you can use the reversible pumps mod. HK12-HK20, for boats larger than 15m ( 50’ ) we recommend to use a solenoid pump. For outboard engines and hydraulic steering system, the outboard version and the HK12 pump can be used.

Sailboats

For boats with hydraulic steering systems you can use the reversible pumps type HK12-HK20. For big boats or heavy displacement boats we recommend to use a solenoid pump. For boats with mechanical steering systems, you will need the linear actuators, type LAR7 or LAR12, depending on the stroke required.
