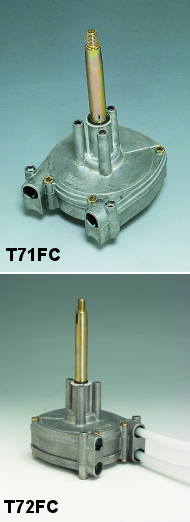

T71FC and T72FC rotary steering system
A COMPLETE STEERING SYSTEM CONSISTS OF:
Complete Kit Rotech 7 ft. - 20 ft. $156.00
Kit Dual Cable Rotech II 7 ft. - 20 ft. $399.00
- Steering Helm :
T71FC - 36652 Z - Single cable steering helm List 76.96
Your Price
$ 72.89
T72FC - 36653 A - Dual cable steering helm List
162.40 Your Price
$122.00
T81FC - 38957 J - Single cable steering helm for X53 Tilt Wheel
Price $112.48
T82FC - 38958 L - Dual cable steering helm for X53 Tilt Wheel
Price $122.00
- Mounting Bezel :
X34 - Black 36654 B - 90° mounting
Your Price
$22.20
X34W - White 40654C - 90° mounting Your Price
$22.20
X35 - Black 36655 C - 20° mounting Your Price
$22.20

- Steering Cable :
M66 available in one foot increments See
below
(Note: two M-66's are needed with the T72FC system)
- Steering wheel optional
- Engine connection kits.
FEATURES AND TECHNICAL SPECIFICATIONS
• All stainless steel cable output ends as per ABYC
safety standards
• Corrosion resistant materials
• Particularly suitable where clearance is limited
• Optional 90° or 20° installation with or without friction kit
• Lock-to-lock steering wheel turns: approx. 3.8
• Stroke: 9” (228 mm)
• Maximum allowable steering wheel diameter:
20” (508 mm)
• Minimum steering cable bend radius: 7.9” (200 mm)
• Maximum operating load at the tiller end: 3300 N
(750 lbs - 340 kg)
• Minimal feedback
• Compact for mounting
• Exceeds ABYC safety standards
• T71FC and T72FC steering systems should not be used
on boats equipped with engines that exceed the
maximum horsepower rating of the boat.
• For boats faster than 50 mph the twin cable steering
system is recommended
NMMA accepted numbers: T71-887009; T72-887010
T73FC NON-REVERSIBLE (no feedback) steering systems
A COMPLETE STEERING SYSTEM CONSISTS OF:
Complete Kit Accura 7 ft. - 20 ft. $244.00
- Steering Helm :
T73FC - 36917 L - Single cable steering helm Your Price $144.00
- Mounting Bezel :
X34 - Black 36654 B - 90° mounting
Your Price
$22.20
X34W - White 40654C - 90° mounting Your Price
$22.20
X35 - Black 36655 C - 20° mounting Your Price
$22.20
- Steering Cable :
M66 Cables are available in one foot increments
See below
- Steering wheel optional
- Engine connection kits
FEATURES
AND TECHNICAL SPECIFICATIONS :
• Patented non reversible mechanism
• The non reversible steering helm eliminates the
continuous load on the operator caused by the propeller
torque making steering easy and safe.
• Ideal for larger outboards and surfacing propellers.
• Compact rotary helm unit: the central location of the
steering shaft makes these systems the most compact in their class.
• Most suitable where clearance is limited.
• Standards 3/4” tapered shaft.
• All stainless steel cable output ends as per ABYC safety standards.
• Made exclusively in corrosion resistant materials.
• Lock to lock steering wheel turns: approx 3.8
• Maximum allowable steering wheel diameter: 406 mm (16”)
• Minimum steering cable bend radius: 7.9” (200 mm)
• Maximum operating load at the tiller end: 3300N (750 lbs - 340 kg)
• Exceeds ABYC safety standards
• T73FC steering systems should not be used on boats equipped with engines
that exceed the maximum horsepower rating of the boat.
• For boats faster than 50 mph the twin cable steering system is recommended
NMMA accepted numbers:
T73FC - 887025
T81 - T82 - T83FC - TILT
WHEEL HELMS
A COMPLETE STEERING SYSTEM CONSISTS OF:
- Steering Helm :
T81FC - 37658 I - Single cable steering helm for tilt wheel
Your Price
$111.00
T82FC - 37659 J - Dual cable steering helm for tilt wheel
Your Price
$123.00
T83FC - 37660 A - No feedback single cable
steering helm for X52 Tilt Your Price $220.00
- Steering Cable :
M66 available in one foot increments
(Note: two M66 are required for T72FC and T82FC systems)
- Steering wheel optional
- Engine connection kits
M66 X 7FT
$105.00
M66 X 8FT
$105.00
M66 X 9FT
$105.00
M66 X 10FT
$105.00
M66 X 11FT
$105.00
M66 X 12FT
$105.00
M66 X 13FT
$105.00
M66 X 14FT
$105.00
M66 X 15FT
$105.00
M66 X 16FT
$105.00
M66 X 17FT
$105.00
M66 X 18FT
$105.00
M66 X 19FT
$105.00
M66 X 20FT
$105.00
M66 X 21FT
$160.00
M66 X 22FT
$167.00
M66 X 23FT
$174.00
M66 X 24FT
$182.00
M66 X 25FT
$193.00
M66 X 26FT
$201.00
M66 X 27FT
$208.00
M66 X 28FT
$222.00
M66 X 29FT
$230.00
M66 X 30FT
$241.00
OVER 30 FT. ADD $8.40 PER FOOT
K66 ADAPTOR FOR M66 CABLE TO REPLACE M47 CABLES
$18.20
- Tilt Mechanism and Mounting Bracket kit:
X52 - 37662 C - 90° mounting for use with T81FC, T82FC or
T83FC
Your Price $143.00
FEATURES
AND TECHNICAL SPECIFICATIONS :
• Tilt range of 40° and five locking positions
• Fast, simple installation
• Tilt device eliminates underdash movement
• All stainless steel output end of cable as per ABYC safety standards
• Corrosion resistant materials
• Lock-to-lock steering wheel turns: approx. 3.8
• Maximum allowable steering wheel diameter: 16” (406 mm)
• Minimum steering cable bend radius: 7.9” (200 mm)
• Maximum operating load at the tiller end: 3300N (750 lbs - 340 kg)
• Exceeds ABYC safety standards
• T81, T82 andT83FC steering systems should not be used on boats equipped
with engines that exceed the maximum horsepower rating of the boat.
• For boats faster than 50 mph the twin cable steering systems are recommended
NMMA accepted numbers: T81 - 887027; T82-887028;
T83FC - 887029 |
