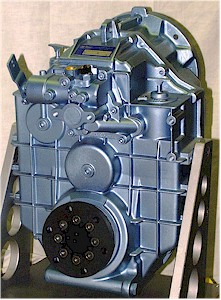

ZF Marine ZF 80 IV (HSW 800 V1)
ZF Marine ZF 80 IV (HSW 800 V1) Technical SpecificationsZF Marine ZF 80 IV (HSW 800 V1) Dimensions and CAD Drawings
  • Reverse reduction integral marine transmission with hydraulically actuated multi-disc clutches
  • Suitable for high performance applications in luxury motoryachts, sport fishers, express cruisers etc.
  • Robust design also withstands continuous duty in workboat applications
  • Fully works tested, reliable and simple to install
  • Compatible with all types of engines and propulsion systems, including waterjets and surface- piercing propellers, as applicable
  • Design, manufacture and quality control standards comply with ISO 9001
  • Lightweight and robust aluminum alloy casing (sea water resistant)
  • Case hardened and precisely ground gear teeth for long life and smooth running
  • Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead
  • Compact, space saving design due to beveloid gear principle
  • B/W connection integrated with casing
  • Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable
  • Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode)
  • Oil cooler complete with fittings and flexible oil hoses
  • Engine-matched dual stage coupling
  • Mounting brackets
  • Trolling valve (mechanical) for slow-speed drive
  • Propeller shaft flange and coupling bolt sets
  • SAE 2 and SAE 3 bell housings
  • Electronic shift and slow speed (trolling) control system l2 or 24 VDC (HSWE version)
  • Classification by all major Classification Societies on request
